Dual Stage Clutch Kit John Deere

• For 2.844″ Flywheel Step
• For Heavy Duty Service
• New – not rebuilt

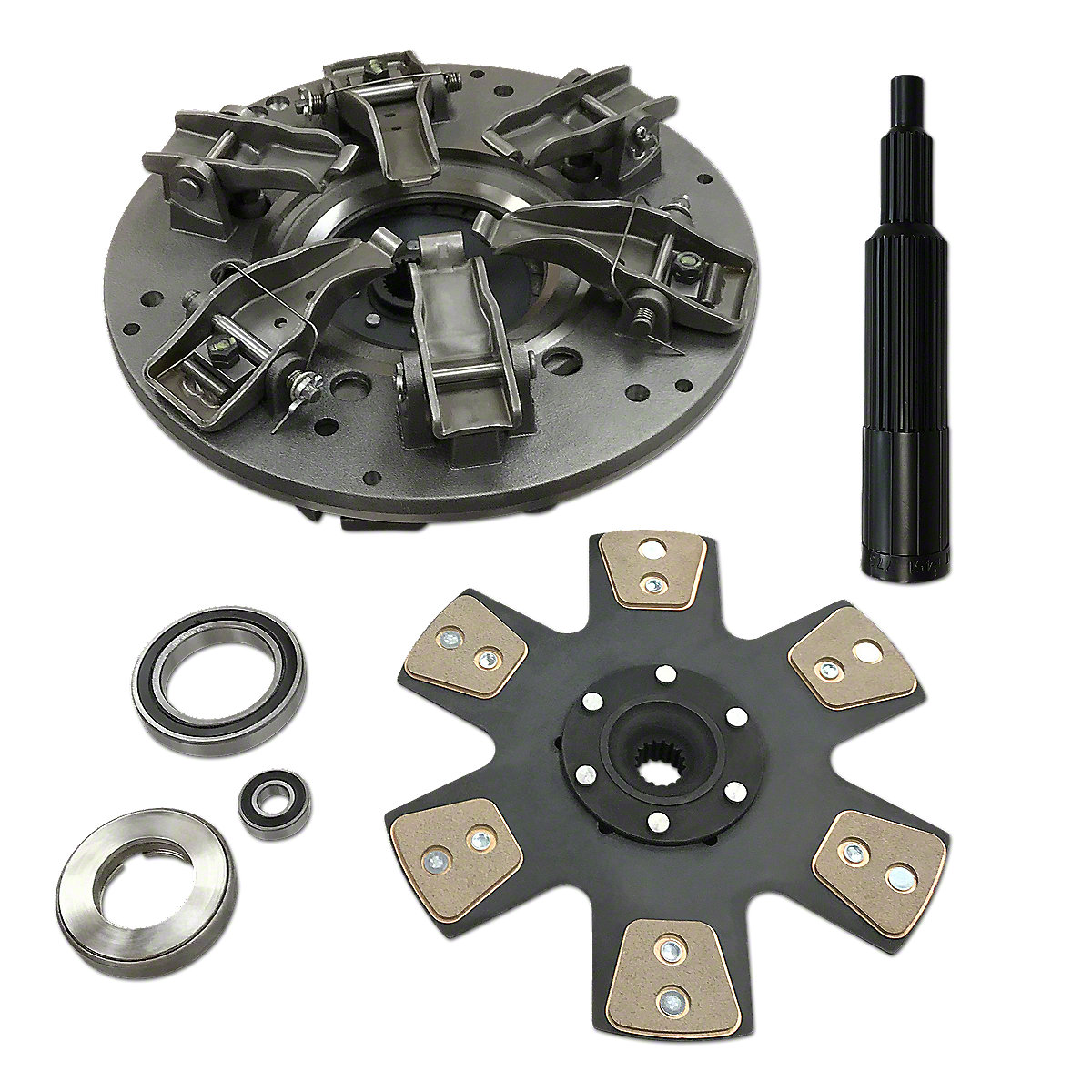

Note: Includes new 12″ 6 pad button clutch disc, new PTO disc, new dual stage pressure plate, new clutch throw-out bearing, new PTO release bearing, new pilot bearing & clutch lineup tool.

Clutch

• 12″ O.D.
• 1-1/6″ 16 Spline Hub
• Solid Center
• 6 Pad Button Clutch Disc

Pressure Plate

• 12″
• 6 Lever
• 12 Spring
• 26 Spline PTO Disc with 1-11/16″ Hub

Notes

• For 2.844″ Flywheel Step
• Clutch Disc, Replaces AR30129, AR41096, AR42126, AR55661, RE244088
• 12″ Dual Stage Pressure Plate Assembly with PTO Disc Installed, Replaces Assembly RE153027, RE153028, includes the following; AR26840, R26660, R26835, R26836, R31093, R41342, R41343, R46425, R51392
• Clutch Throw-out Bearing, Replaces AR41794
• PTO Release Bearing, Replaces AR26845
• Pilot Bearing, Replaces JD8504, JD9449
• Clutch Alignment Tool

Other Application Info

Note, all John Deere 3010 tractors had syncro range transmission which means that you have to depress the clutch and come to a full stop before shifting gears.
